Low Noise Digital Outdoor TV Antenna

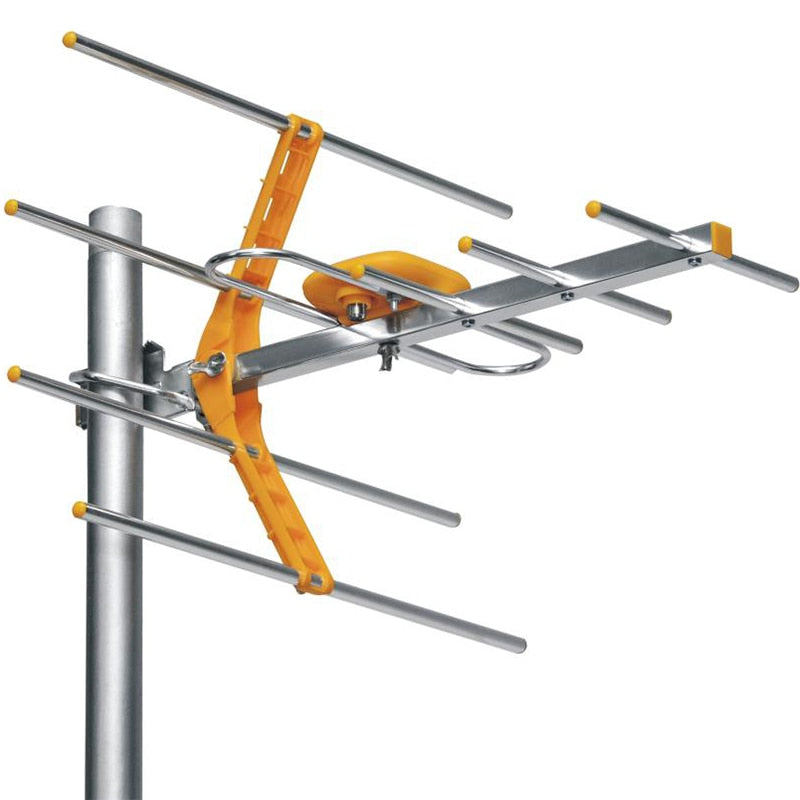

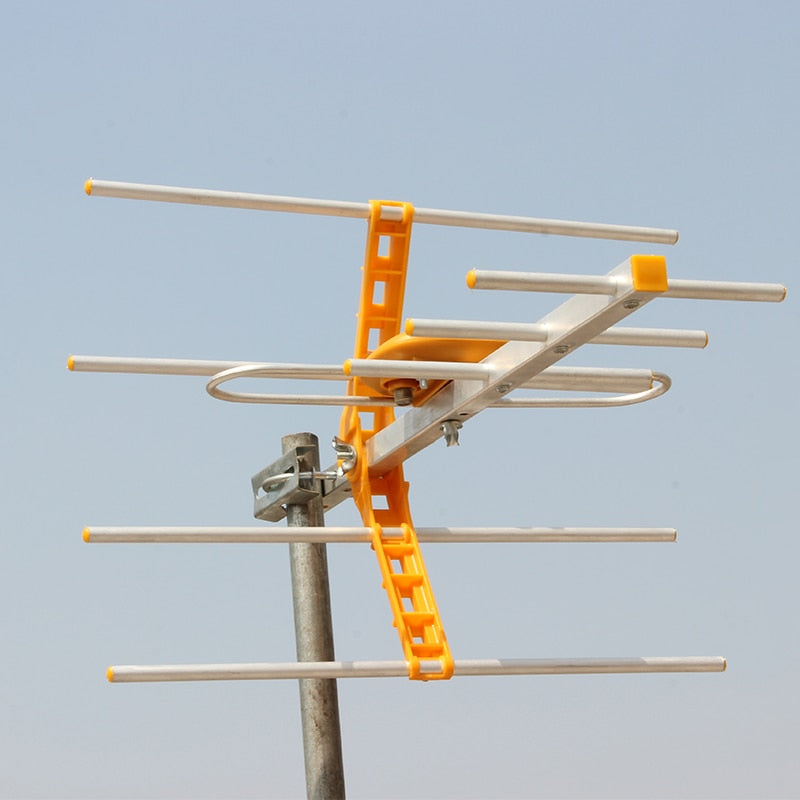

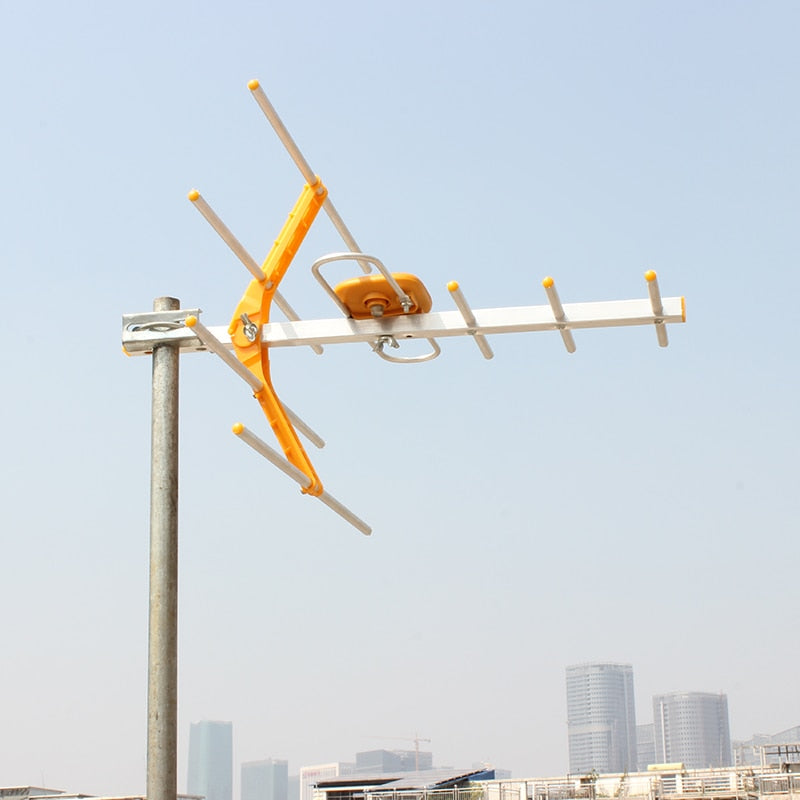

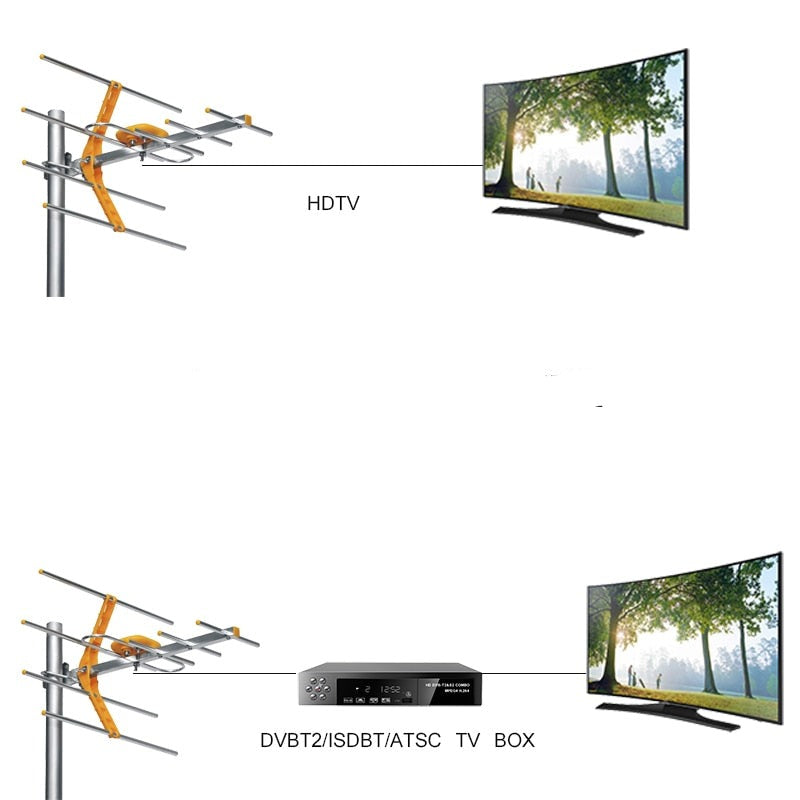

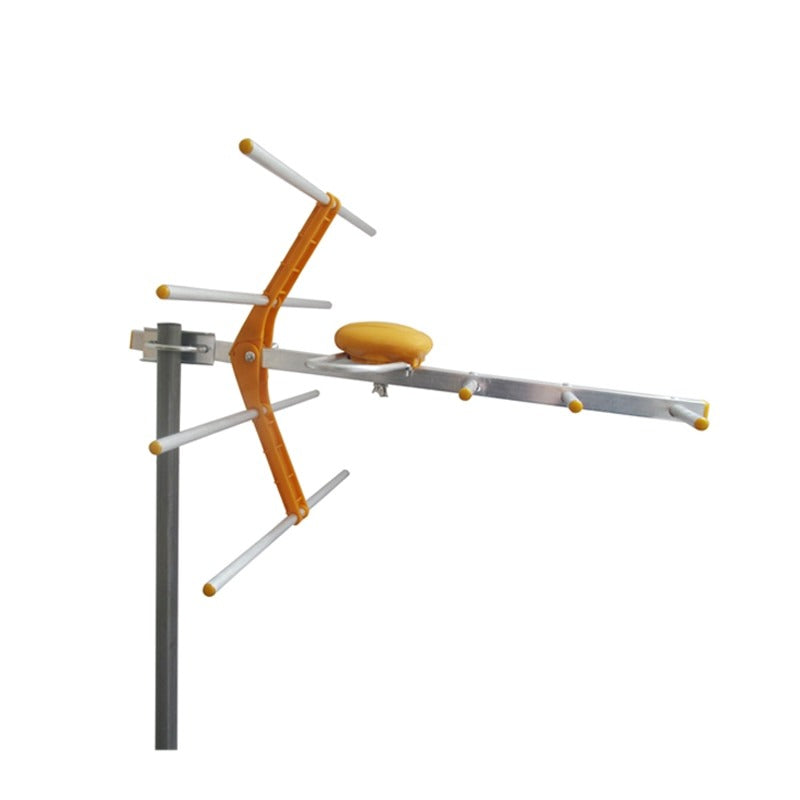

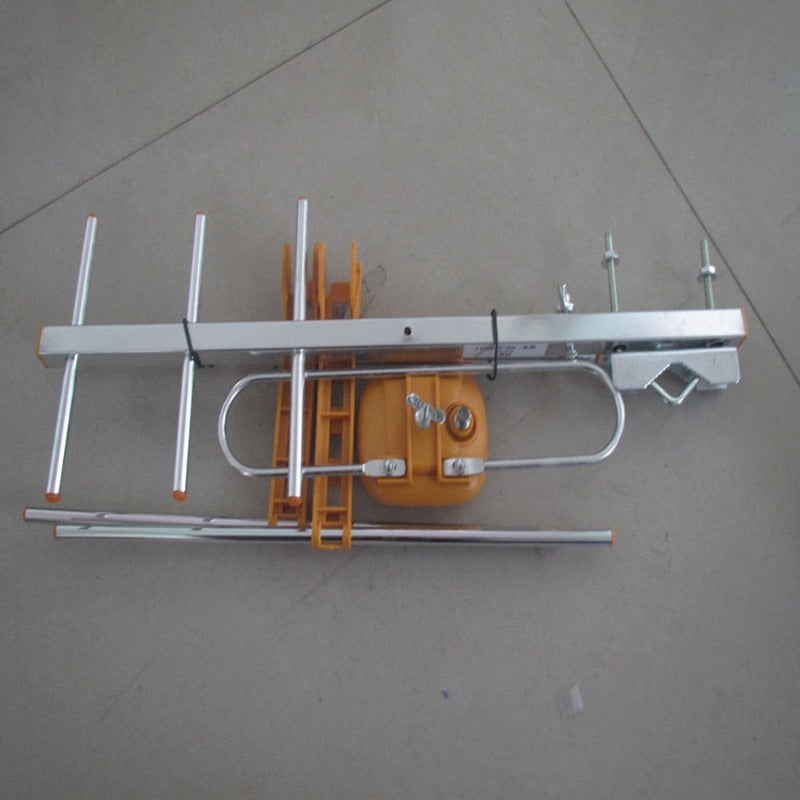

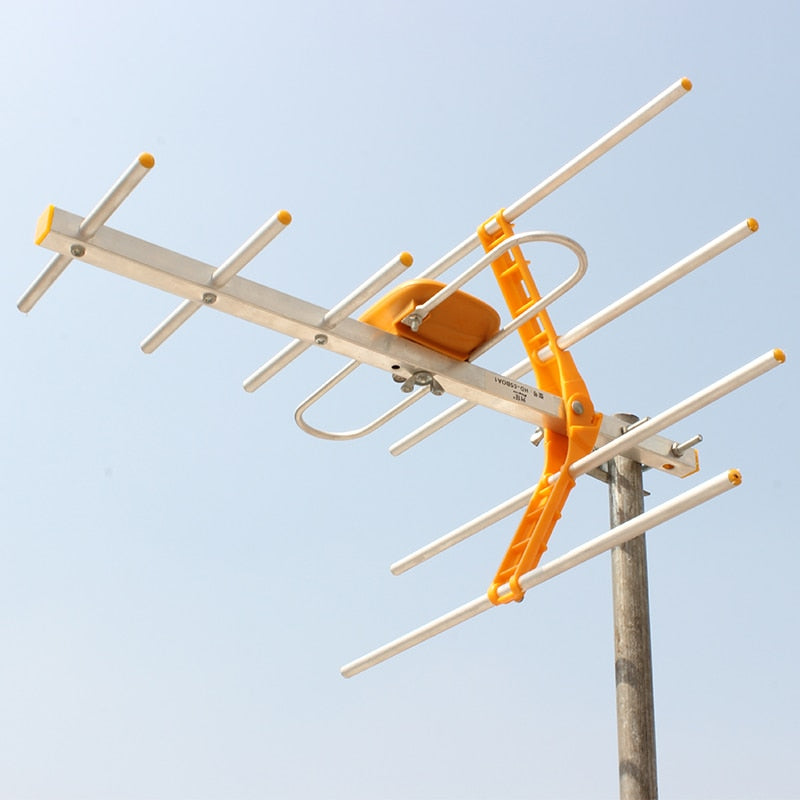

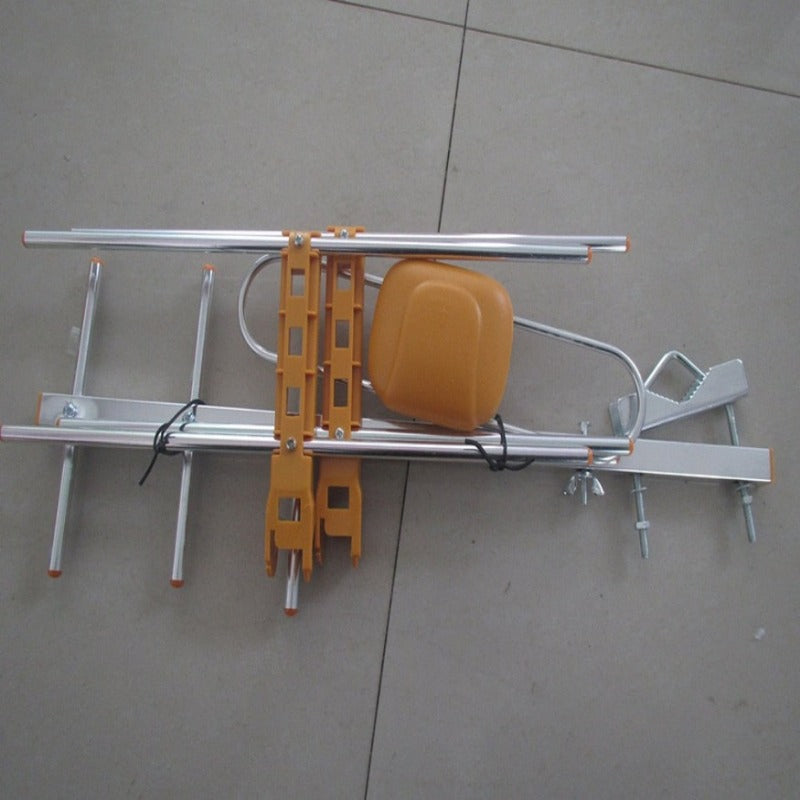

     The SZbox model HD-05BOA1IA outdoor digital HD TV Antenna, which is an oscillating type of antenna that can find the strong signal direction with its wide frequency band. The folding design antenna has V-reflectors and printing plate impedance that will-match device and effectively receives and transmits digital TV signals. It is compatible with a number of formats like DVB-T/H, DVB-T 2, DMB- T/H, ISDB-T, ATSC-T, ADTB- T, etc. The antenna frequency range is from 470 MHz to 860MHz, and the Output impedance is 75 Ω with a standing wave ratio less than or equal to 2.0 or no greater than or equal to 15 db. The Support bar diameter 30mm to 45mm (about 1.18” to 1.77”). The Interface form is English F female head Polarization, the Working temperature is from - 40 ℃ to 70 ℃ (about -40 deg. F to 158Deg.F), the working humidity is 5% to 95%, and working Air pressure is from 86kPa to 106kPa. The Function is For HD TV, DVBT2, DVBT, ATSC, ISDBT.

Specifications
Antenna Type	HD Digital Outdoor TV	Model	05boa1
Format	HD TV	Compatible	DVB-T/H, DVB-T 2, DMB- T/H, ISDB-T, ATSC-T, ADTB- T
Frequency Range	470 Mhz -860mhz	Value Added	7 DB
Output Impedance	75 Ω	Wave Ratio	Equal To 2.0 Or Less
Ratio	Equal To 15 DBOR Grater	Support Bar Diameter	Φ 30 Mm ~ 45 Mm
Polarization Mode	Horizontal	Working Temperature	- 40 ℃ ~ 70 ℃
Relative Humidity	5%~95%	Air Pressure	86kpa~106kpa
